“Real-time isn’t a feature — it’s the experience.”

✨ What Are WebSockets?

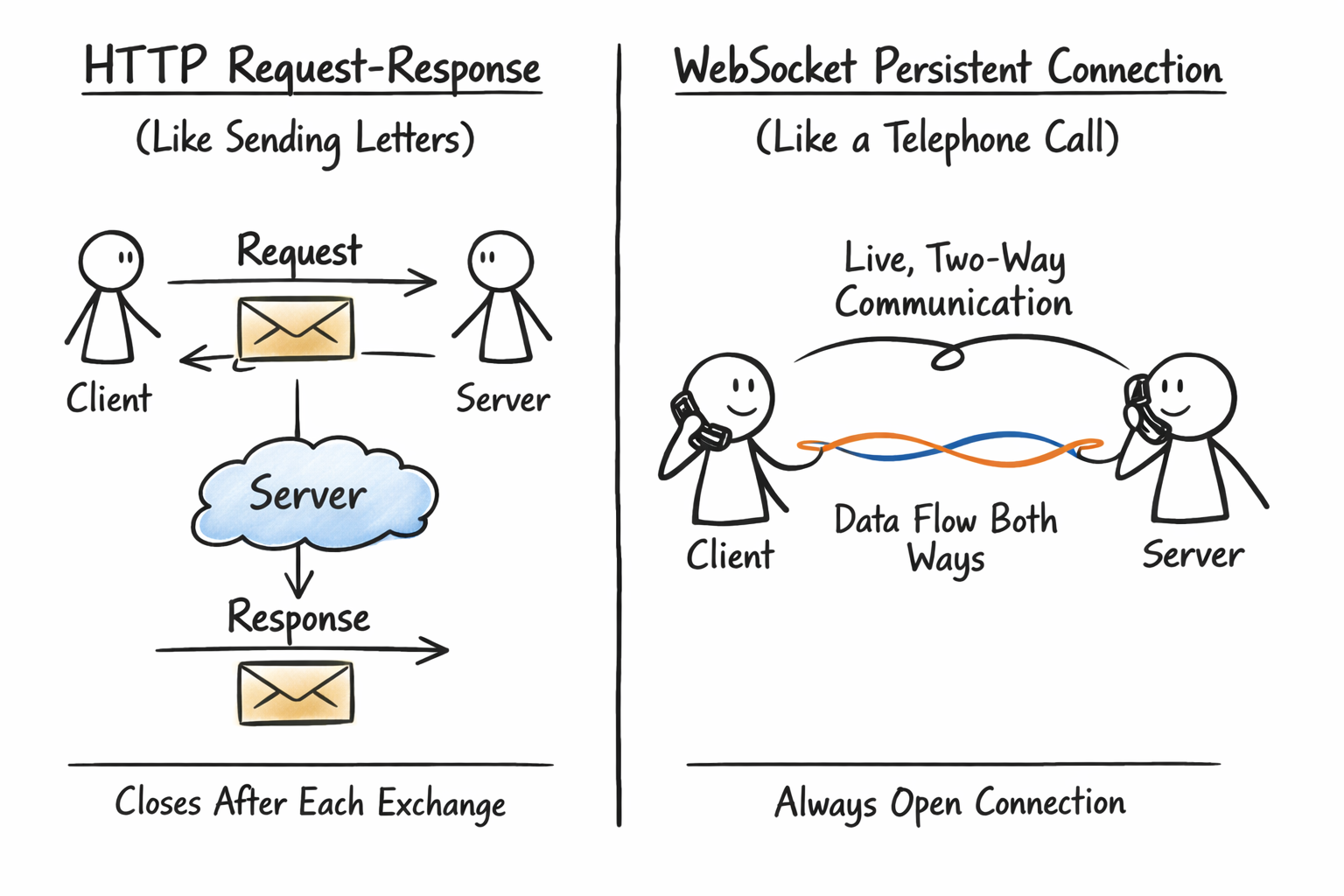

A New Way to Talk: Beyond Request-Response

Making It Official: The WebSocket Standard

Addresses and Security: ws:// and wss://

🤝 The Secret Handshake: How a Connection Starts

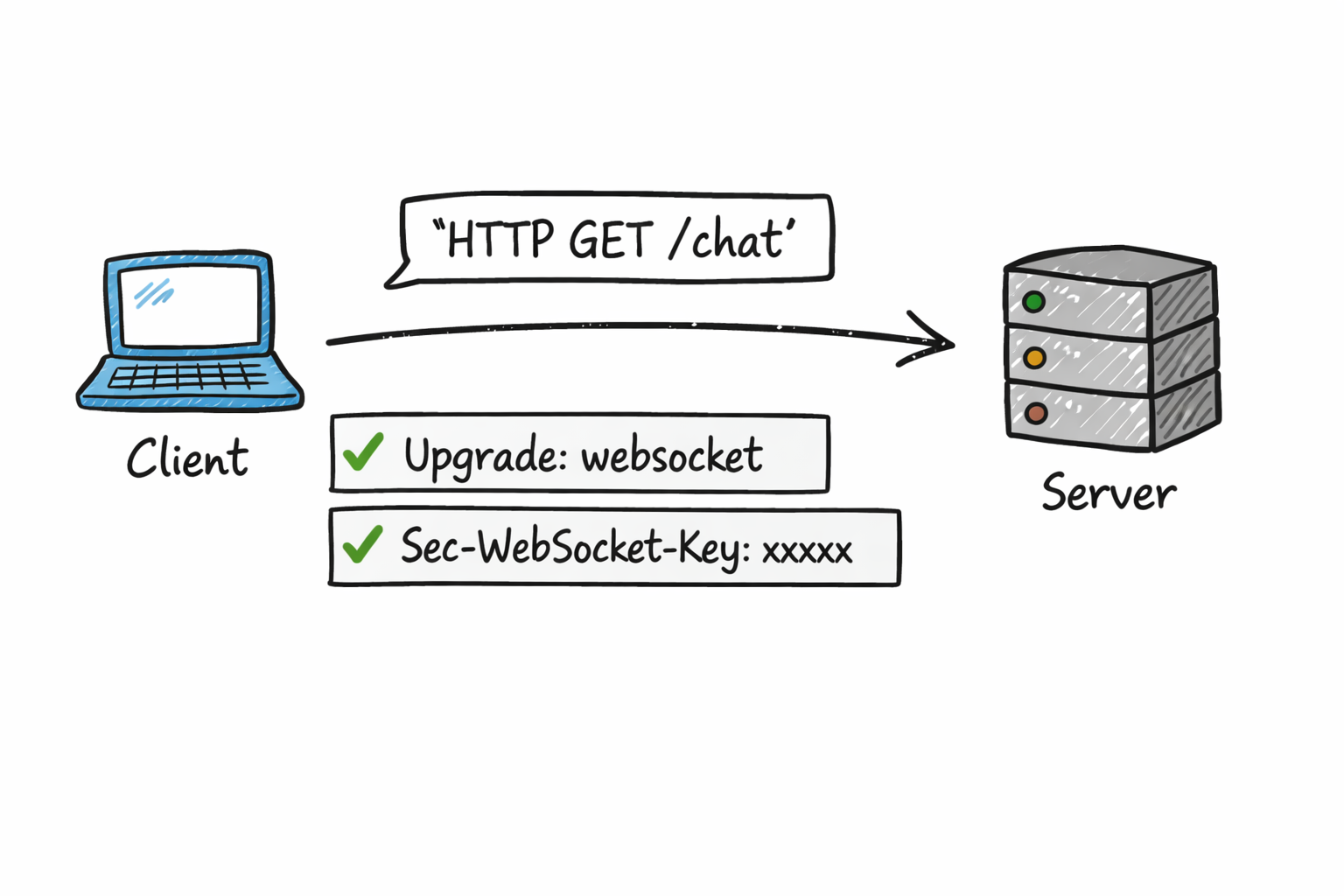

The Client's Request: "Can We Switch to WebSockets?"

• Connection: Upgrade: This tells the server, "I want to switch to a different protocol."
• Upgrade: websocket: This specifies that the new protocol should be "websocket."
• Sec-WebSocket-Version: 13: This indicates the version of the WebSocket rules the client wants to follow (version 13 is the modern standard).
• Sec-WebSocket-Key: This contains a random, unique key. It's not for security in the way a password is, but acts as a sort of challenge to make sure the server really understands WebSockets.
• Origin: For security, the browser includes this header to tell the server where the request is coming from (e.g., your-website.com).

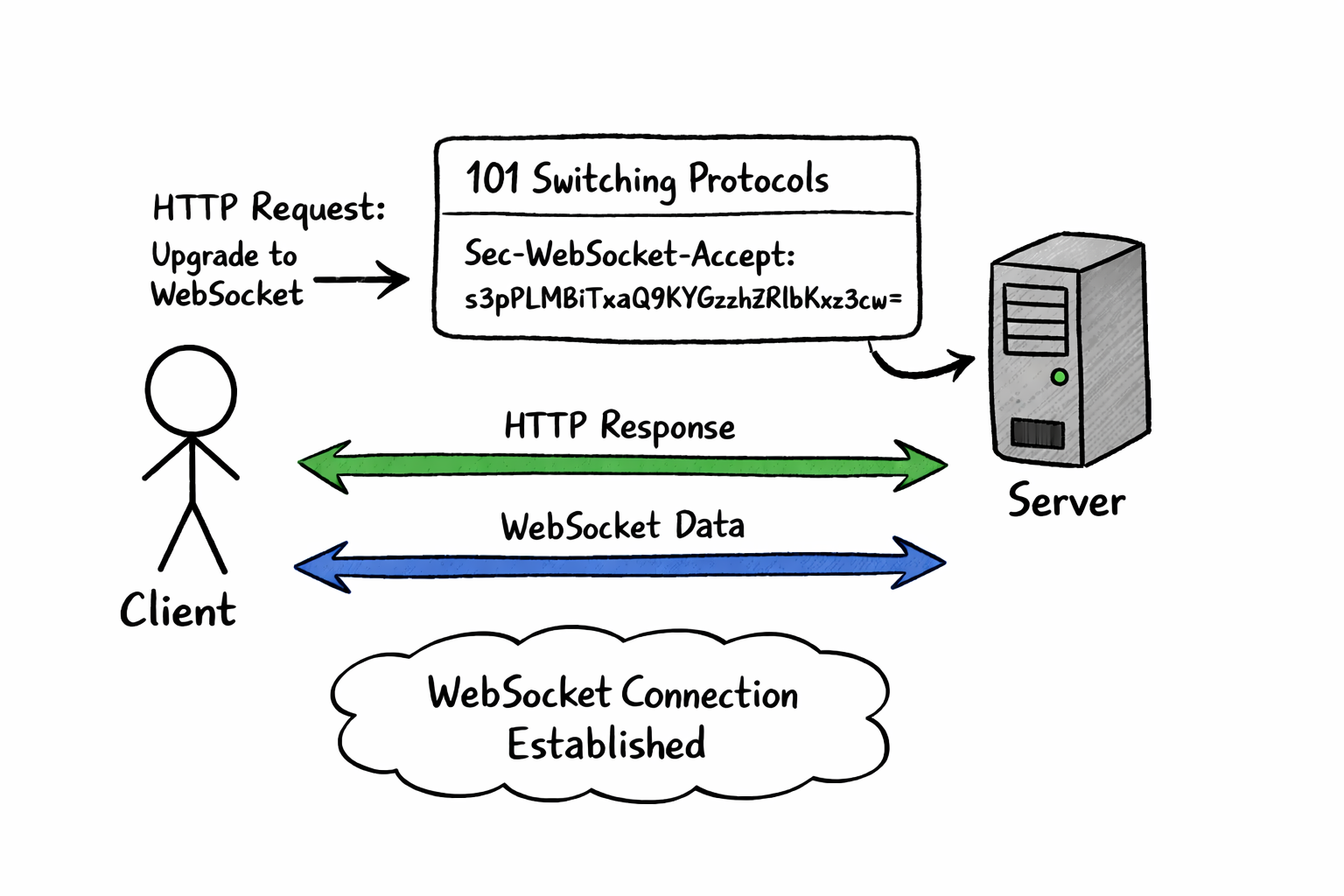

The Server's Response: The Handshake is Complete

A Graceful Goodbye: The Closing Handshake

📦 Under the Hood: How Data Travels in Frames

From a Stream of Data to Individual Messages

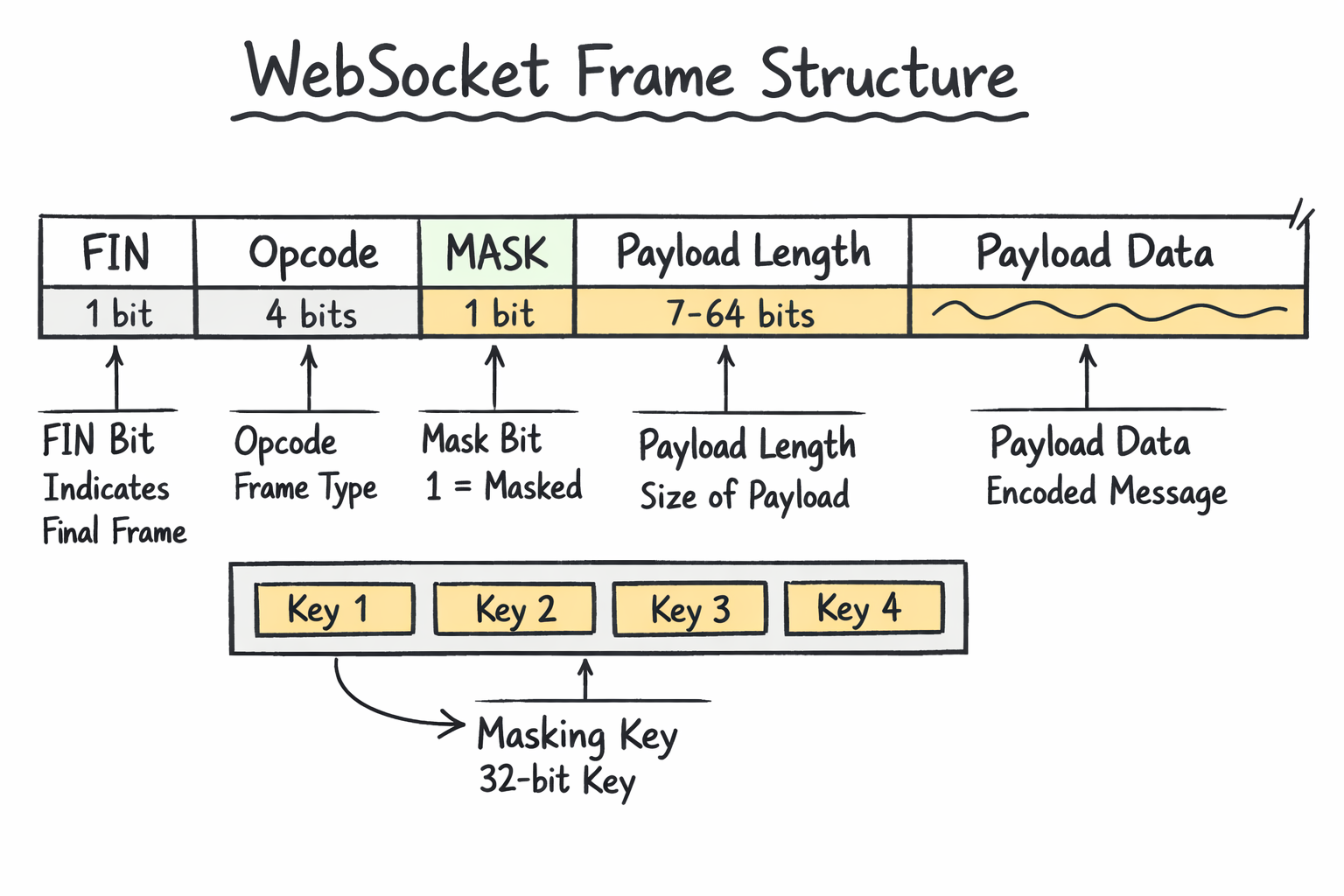

Dissecting a Frame: The "Envelope" Information

• FIN bit: This single bit answers the question, "Is this the last piece of the message?" If it's 1, the message is complete. If it's 0, more frames are coming.
• Opcode: This tells the receiver what kind of data is inside the frame. The most common types are text, binary data, or special "control" frames used for managing the connection (like Ping, Pong, or Close).
• Mask bit: This indicates if the data has been "masked" or scrambled. All data sent from a client to a server MUST be masked.
• Payload length: This specifies how long the actual data (the "payload") is in bytes.
• Masking-key: If the data is masked, this 4-byte key is included. The receiver uses this key to unscramble the data.

Client-to-Server Masking: A Safety Feature

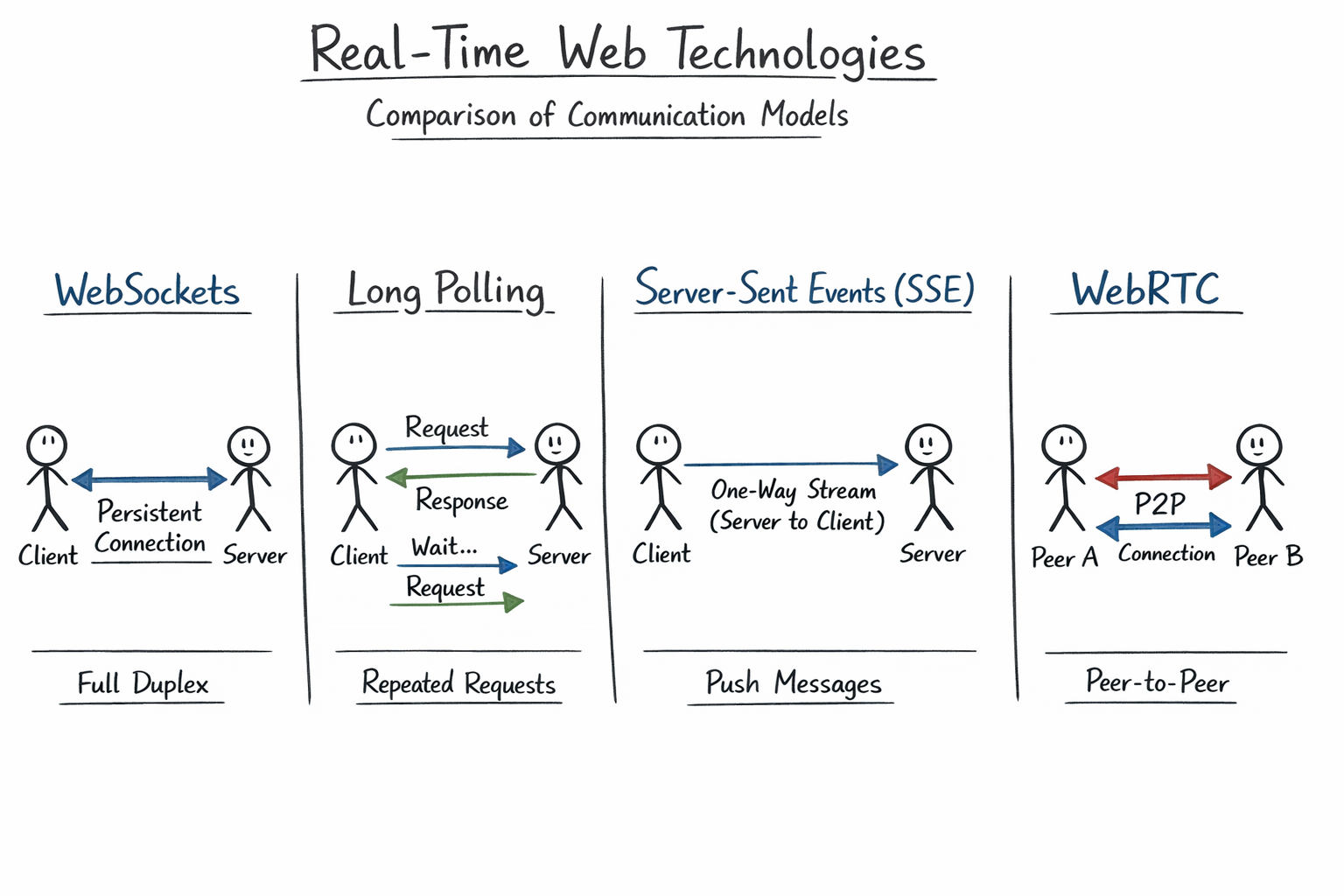

🔄 WebSockets vs. The Alternatives

The Old Ways: HTTP Polling

• Short Polling: Imagine a child on a road trip repeatedly asking, "Are we there yet?" every five seconds. That's short polling. The browser sends a request to the server at a fixed interval. It's simple but very inefficient, creating a lot of useless traffic.
• HTTP Long Polling: This is a smarter version. The browser asks the server for an update, but the server holds the connection open and only responds when it actually has something new to share. It's better, but still has the overhead of setting up a new connection for every single message from the server.

The One-Way Broadcast: Server-Sent Events (SSE)

The Direct Line: WebRTC

🛠️ Putting It Into Practice: Code and Tools

In the Browser: The Native WebSocket API

// Establish a secure WebSocket connection.
const socket = new WebSocket('wss://example.com/socket');

// Event handler for when the connection is opened.
socket.onopen = function(event) {
    console.log('Connection established');
    // Send a message to the server.
    socket.send('Hello Server!');
};

// Event handler for receiving messages from the server.
socket.onmessage = function(event) {
    console.log('Message received from server: ' + event.data);
};

// Event handler for connection closure.
socket.onclose = function(event) {
    console.log('Connection closed.');
};

// Event handler for errors.
socket.onerror = function(error) {
    console.error(`WebSocket Error: ${error.message}`);
};

On the Server: A Simple Node.js Example

const WebSocket = require('ws');

// Create a new WebSocket server on port 8080.
const wss = new WebSocket.Server({ port: 8080 });

// When a new client connects...
wss.on('connection', function connection(ws) {
    console.log('A new client connected.');

    // When a message is received from this client...
    ws.on('message', function incoming(message) {
        console.log('received: %s', message);

        // Echo the message back to the client that sent it.
        ws.send('Server received: ' + message);
    });

    ws.on('close', () => {
        console.log('Client disconnected.');
    });
});

console.log('WebSocket server is running on ws://localhost:8080');

Helpful Toolkits: Libraries and Platforms

• Libraries (like Socket.IO): Think of Socket.IO as a helpful toolkit built on top of WebSockets. It adds essential features like automatic reconnection, the ability to fall back to Long Polling if WebSockets are blocked, and an easy way to create "rooms" to broadcast messages to specific groups.
• Managed Platforms (like Ably or Pusher): These are "WebSocket-as-a-Service" platforms. They handle all the complicated server infrastructure for you, allowing you to focus on your app's features while they manage scaling to millions of users globally.

🔐 Staying Safe: WebSocket Security Basics

The Golden Rules

• Always Use wss://: Just like using https:// for websites, using wss:// encrypts your WebSocket traffic and protects it from being snooped on.
• Validate All Input: Never trust data coming from a client. Always check and clean it on the server to prevent common web attacks.
• Prevent Denial-of-Service (DoS): To stop attackers from overwhelming your server, limit the number of connections a single user can make and set a maximum message size.

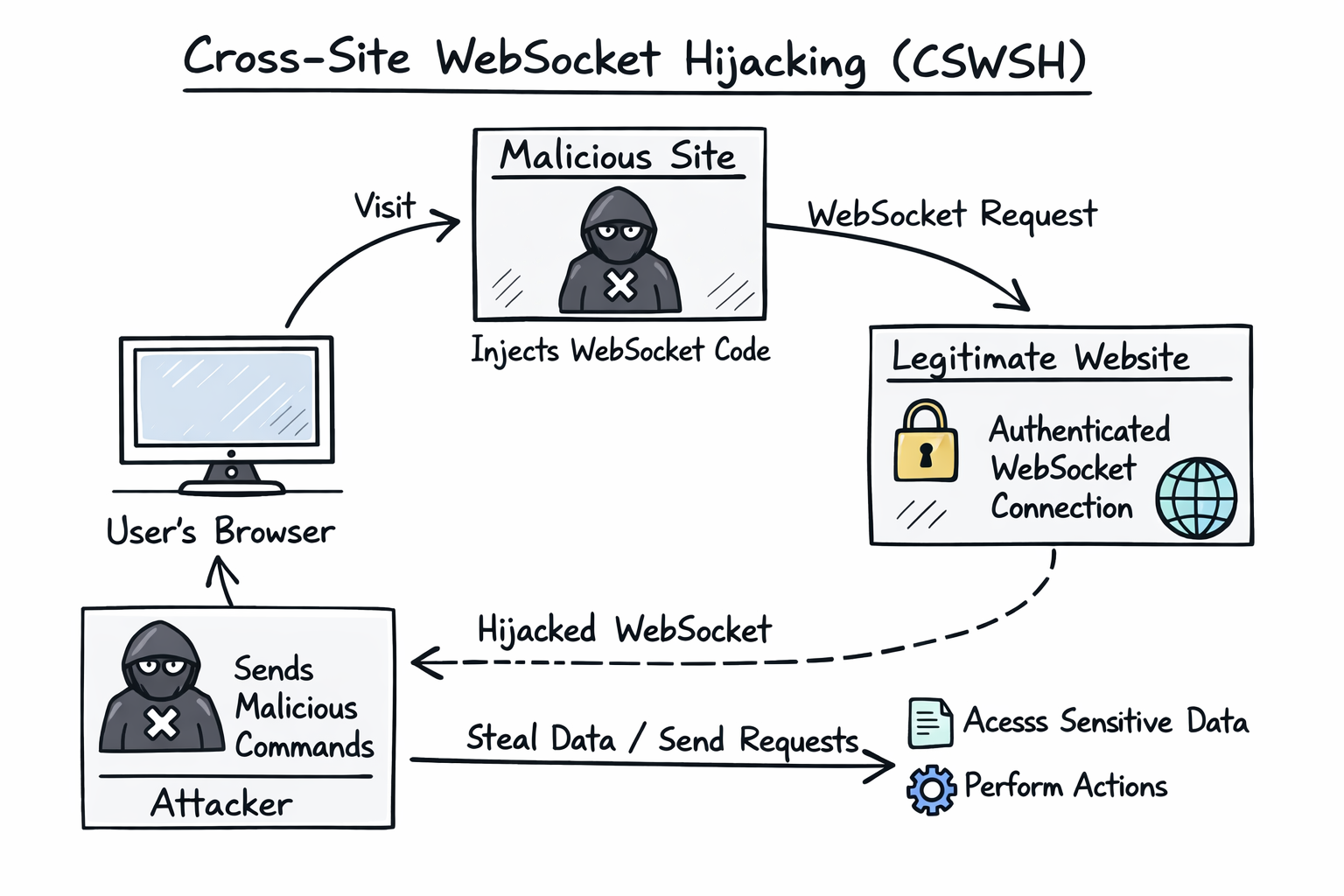

The Biggest Threat: Cross-Site WebSocket Hijacking (CSWSH)

1. You are logged into your bank's website.
2. An attacker tricks you into visiting a malicious website.
3. A script on the malicious site silently tries to open a WebSocket connection to your bank's server.
4. Your browser, trying to be helpful, automatically attaches your login cookie to this request.
5. If the bank's server isn't careful, it sees your valid cookie, thinks the request is from you, and opens an authenticated WebSocket connection for the attacker.

How to Defend Against CSWSH

🌍 WebSockets in the Wild: Real-World Examples

Financial Trading Platforms

Online Multiplayer Games

Collaborative Tools

🔮 The Future is a Two-Way Conversation
